Windows Registry 101: A Guide for Forensic Investigations

Every Windows device has a registry, but what is its purpose? I delved deep into the Windows Registry to understand its structure and discover why it’s crucial for investigators.

Windows Registry

The Windows Registry is “a central hierarchical database […] used to store information that is necessary to configure the system for one or more users, applications, and hardware devices”.

Windows uses the registry to manage (to name a few):

• System settings
• File and folder history
• Which programs open certain file types
• Programs that run at startup
• User accounts and settings
• Time zone information
• Past network connections
• Connected USB devices

Structure

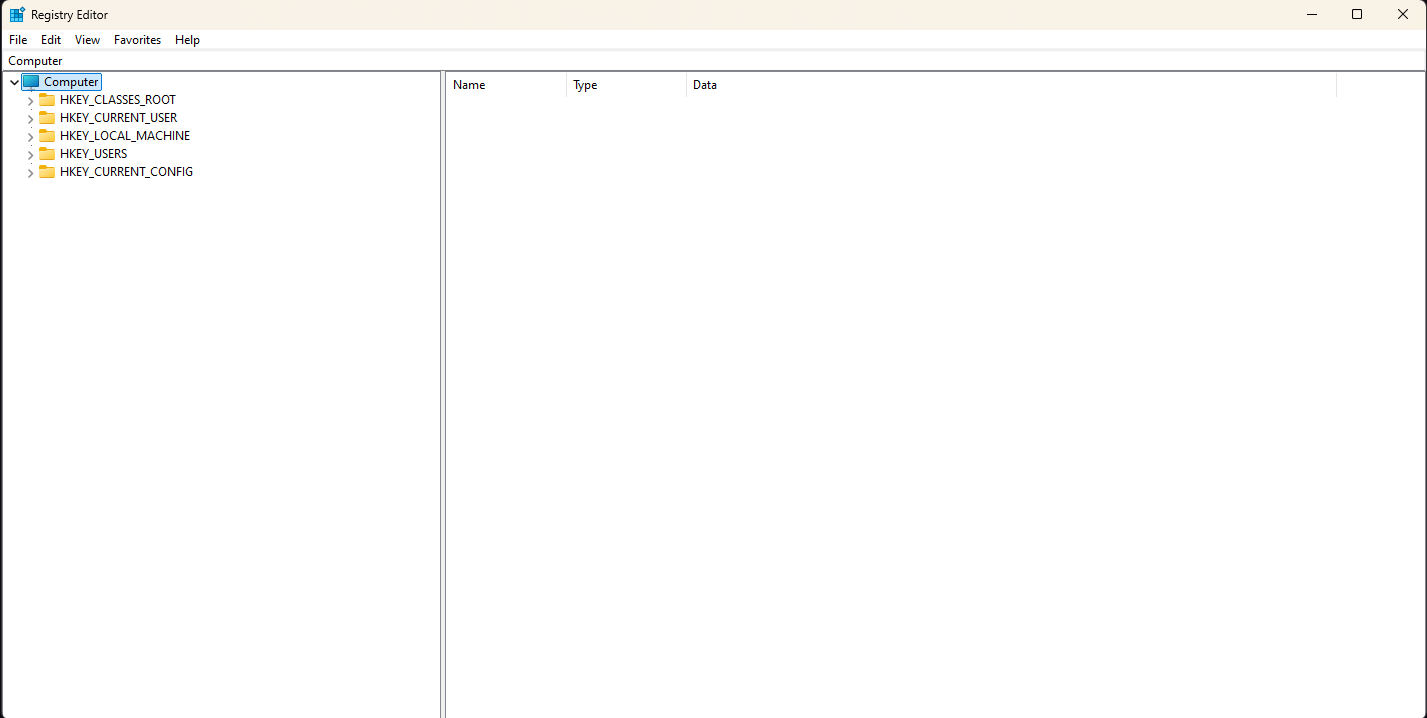

The information in the Windows Registry is stored in 5 Registry Hives (or root keys).

1. HKEY_CURRENT_USER
2. HKEY_USERS
3. HKEY_LOCAL_MACHINE
4. HKEY_CLASSES_ROOT
5. HKEY_CURRENT_CONFIG

HKEY stands for Handle to Registry Key. These hives (or HKEY) are the place where a specific set of settings is stored.

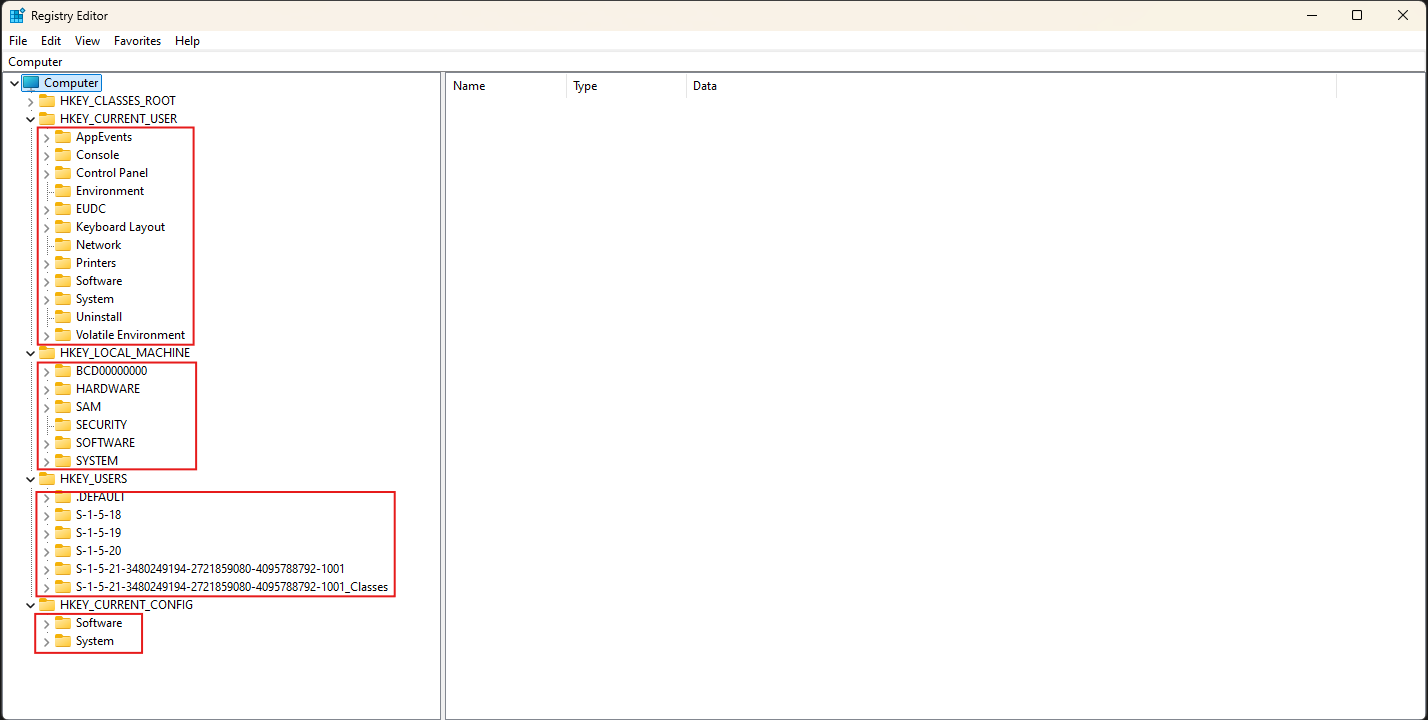

Each hive contains keys, (like folders)

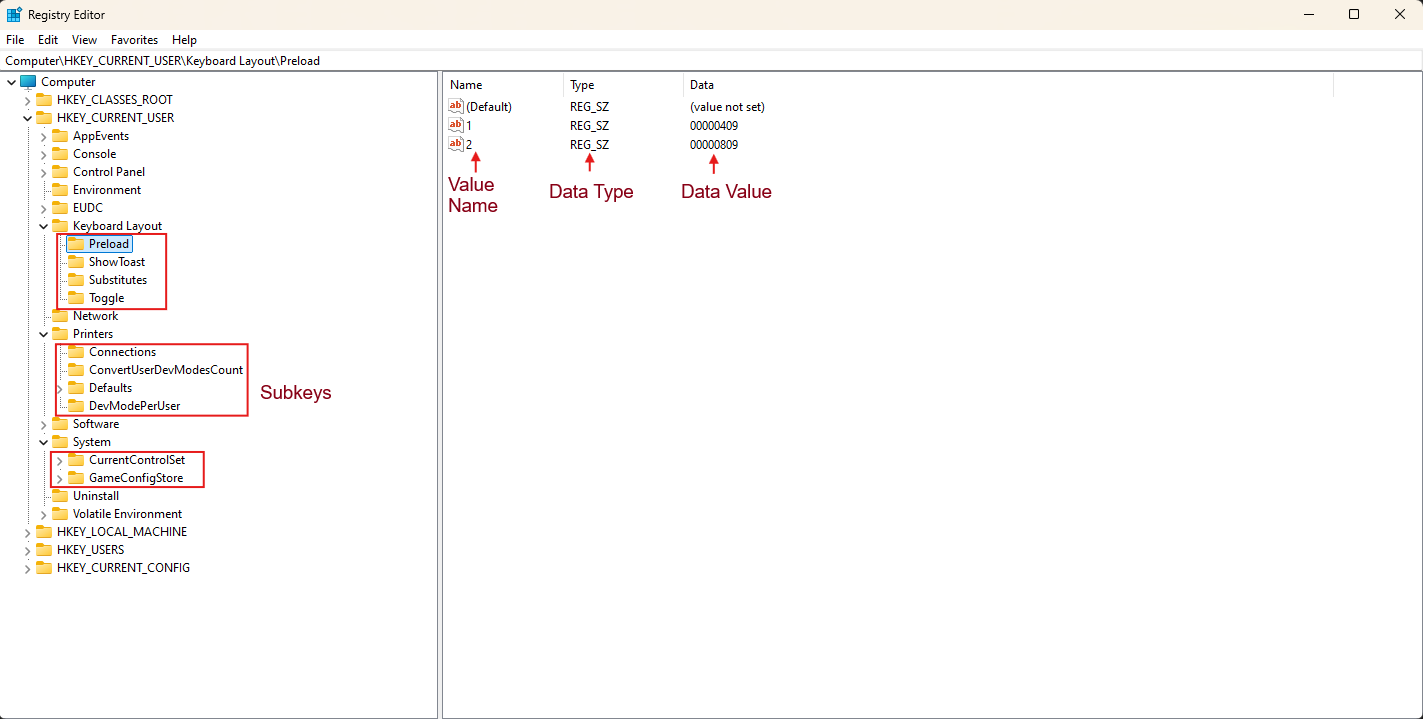

These keys contain subkeys (and some subkeys have subkeys themself) that store settings in values (the actual data).

Almost all Windows applications store their configuration data in the registry, though some portable applications may use separate files like .xml or .ini for this.

Where are the Hives stored?

Most of the Hives (except HKEY_CURRENT_USER) are located in the %SystemRoot%\System32\Config directory.

The user related HKEY_CURRENT_USER is located in the user’s profile folder: %SystemRoot%\Users\<Username>

Root Key description

Root key	Description
HKEY_CLASSES_ROOT	Manages file type associations, determining which program opens each file type.
HKEY_CURRENT_USER	Stores settings for the currently logged-in user, like display settings, recently opened files, and environment variables (such as the PATH).
HKEY_LOCAL_MACHINE	Holds system-wide configurations for hardware and software.
HKEY_USERS	Contains information for all user profiles on the system.
HKEY_CURRENT_CONFIG	Stores the hardware configuration used by the system when starting up.

Key Details

HKEY_CLASSES_ROOT

The keys in this Hives are the different extensions used on the system containing a key with data for the Program that is used to open a file. Combines the user configuration in HKEY_CURRENT_USER\Software and machine configuration in HKEY_LOCAL_MACHINE\Software

HKEY_USERS

Contains data for each user profile on the system.

HKEY_CURRENT_USER

Subkey of HKEY_USERS. HKEY_USERS contains the registry settings for all users, while HKEY_CURRENT_USER is a shortcut to the currently logged-in user’s settings.

Stores the settings in the NTUSER.DAT file. This includes environment variables, screen settings, and recently accessed files. File is loaded during user login.

These settings are loaded when the user logs into the system, and unloaded when the user logs out.

Keys include (o.a.):

• Environment (Path value)
• System (System settings like the homedrive)

HKEY_LOCAL_MACHINE

Contains 6 keys:

• BCD
  • Boot configuration (replaces boot.ini).
• HARDWARE
  • Stores information about hardware, recreated at every boot.
• SAM
  • Security Account Manager, containing local accounts and groups.
• SECURITY
  • Holds system security policies and permissions.
• SOFTWARE
  • Stores software configurations, including file type associations.
• SYSTEM
  • Contains system-level configurations for Windows.

HKEY_CURRENT_CONFIG

Contains current system hardware and software settings.

Registry Data Types

The data in the Registry is store in values (the actual data). These can have multiple types:

Name	Data type	Data type
Binary Value	REG_BINARY	Binary data.
DWORD Value	REG_DWORD	32-bit integer, commonly used for configuration settings.
QWORD Value	REG_QWORD	64-bit (8 byte) integer. Used when DWORD (32-bit) is insufficient.
	REG_DWORD_LITTLE_ENDIAN	32-bit integer in little-endian. Mostly used.
	REG_REG_DWORD_BIG_ENDIAN	32-bit integer in big-endian
Expandable String Value	REG_EXPAND_SZ	String. Can contain environment variables (e.g., %SystemRoot%). The string expands when called.
Multi-String Value	REG_MULTI_SZ	List of multiple strings, each terminated by a null character. Used for settings with multi-values.
String Value	REG_SZ	A fixed-length text string.
Binary Value	REG_RESOURCE_LIST	List of hardware resources to be used by the device drivers.
Binary Value	REG_RESOURCE_REQUIREMENTS_LIST	List of possible hardware resources that the system could use.
Binary Value	REG_FULL_RESOURCE_DESCRIPTOR	Detailed list for physical hardware device. Mainly used for Plug-and-play devices.
None	REG_NONE	Undefined or raw binary data types.
Link	REG_LINK	Symbolic link to other key. Used as shortcut to redirect registry operations to an other key.

Acquiring

Using Tools for Acquisition

• FTK Imager: A popular tool for acquiring forensic images of drives, including registry hives, without altering the original data.
• RegRipper: A tool designed for processing registry hives and generating reports, useful for automating analysis.
• Eric Zimmerman’s tools: Eric Zimmerman has developed several registry tools, including Registry Explorer, which allows investigators to view multiple registry hives simultaneously and create bookmarks for frequently used keys.

Manual Acquisition

• regedit: The built-in Windows Registry Editor (regedit) can be used to view and export registry hives or individual keys manually for analysis. Simply navigate to the key, right-click, and select ‘Export’ to save it for further investigation.

Forensic Importance of Registry Keys

The Windows Registry holds a wealth of forensic information, particularly in areas related to user behavior and system configuration. Some of the most important keys for forensic analysis include the following:

Windows Version and Owner Info

HKEY_LOCAL_MACHINE\Software\Microsoft\Windows NT\CurrentVersion: This key contains details about the installed version of Windows, including the registered owner and the version of the OS.

Software Installations

The HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall key logs software installations, showing which programs were installed on the system, when, and by which account.

Time Zone Setting

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation: Stores the system’s time zone.

USB devices

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Enum\USBSTOR: Tracks connected USB storage devices, including device IDs, which can be useful for determining unauthorized data transfers or device connections.

Network connections and configurations

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\Interfaces stores details of past network connections. This can provide a lot of details when tracing a computer’s network activity.

The configuration for a network is found in SYSTEM\CurrentControlSet\Service\Tcpip\Parameters\Interfaces\{GUID OF NETWORK}\.

Autostart programs

The Run keys, often in HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Run show programs that automatically launch on startup. Whit this malware persistence mechanisms can be identified.

User activity

Several registry keys store critical data on user behavior:

User Logons:

Logon events can be found under HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa .

Recent files:

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\RecentDocs tracks recently accessed files.

Open/Save Dialog History:

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\ComDlg32\OpenSavePidlMRU logs files that have been opened or saved via the File Explorer dialog boxes.

Browsing:

For Internet Explorer, browsing history is stored under HKEY_CURRENT_USER\Software\Microsoft\Internet Explorer\TypedURLs.

Chrome user data can be found at HKEY_CURRENT_USER\Software\Google\Chrome\PreferenceMACs.

Shares:

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Services\lanmanserver\Shares contains information on folders shared over the network.

Remote Desktop (RDP) Connections:

The HKEY_CURRENT_USER\Software\Microsoft\Terminal Server Client\Default key holds information regarding recent RDP connections, including the IP addresses of remote systems accessed from the device.

ShellBags:

HKEY_USERS\<SID>\Software\Microsoft\Windows\Shell\BagMRU: Records folder views and settings, enabling the reconstruction of user activity and accessed folders, even if the folder has been deleted.

Conclusion

The Windows Registry is an invaluable source of forensic evidence. By analyzing registry data, investigators can uncover user behavior, track connected devices and understand system configurations. Mastery of registry analysis is essential for digital forensics, as it provides a clear timeline of activity and crucial system events.
